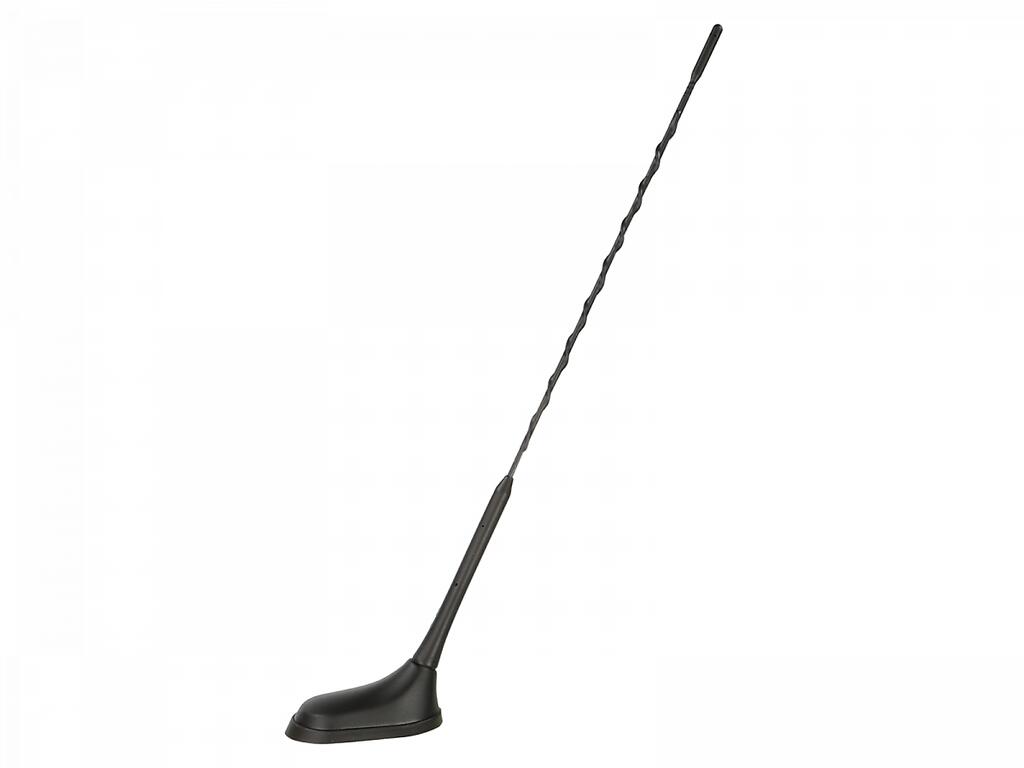

Roof antenna AM/FM DAB/DAB+ GNNS (GPS/GLONA SS/Galileo/Navstar)
Style 16V
AM/FM 12V
DAB/DAB+ 12V
GNSS 3V - 5V Phantomspeisung
Installation point: rear roof
Drill hole: Ø 19mm
Rod length: 41cm / 60°
Antenna socket: L 9,8 cm / W 5 cm
AM/FM connector: HC97(f) (Raku2)
DAB connector: Fakra(m) / cable: 5m RG174 Länge/Z = 50 Ohm/C = 100 pF/m SMB(f)
GNSS connector: Fakra(m) / cable: 5m RG174 Länge/Z = 50 Ohm/C = 100 pF/m SMB(f)
Frequency range:
AM 0,15 - 1,71 Mhz
FM 87,5 - 108 Mhz
DAB/DAB+ III Band 174 - 240 MHz
GNSS 1575,42 - 1,023 Mhz
benefit (dB):
DAB/DAB+ III Band 18dB
GNSS >27 dBi
power consumption:
AM/FM 50 mA
DAB/DAB+ 30 mA max
GNSS 30 mA max
