Ryggekamera adapter Fiat/div
Rear view camera adapter Alfa Romeo / Citroen / Dodge / Fiat / Ford / Iveco / Jeep / Peugeot
Rear view camera adapters are required to maintain the OEM rear view camera.
These allow the connection of a factory pre-equipped camera to an aftermarket device with camera input.
Depending on the vehicle and equipment, the adapter provides the video signal RCA, a power supply +6V/ground for the OEM camera and the reversing signal.
Vehicles with a 360° camera system or systems with moving distance lines may not be compatible.
Before installation, check the correct assignment of the adapter to the OEM connector.
Many retrofit devices must be set to the camera function in the menu.
Please contact our support team for help
02431-9645-96
support@acvgmbh.de
Note:
connector: 52 Pin Fiat contacts

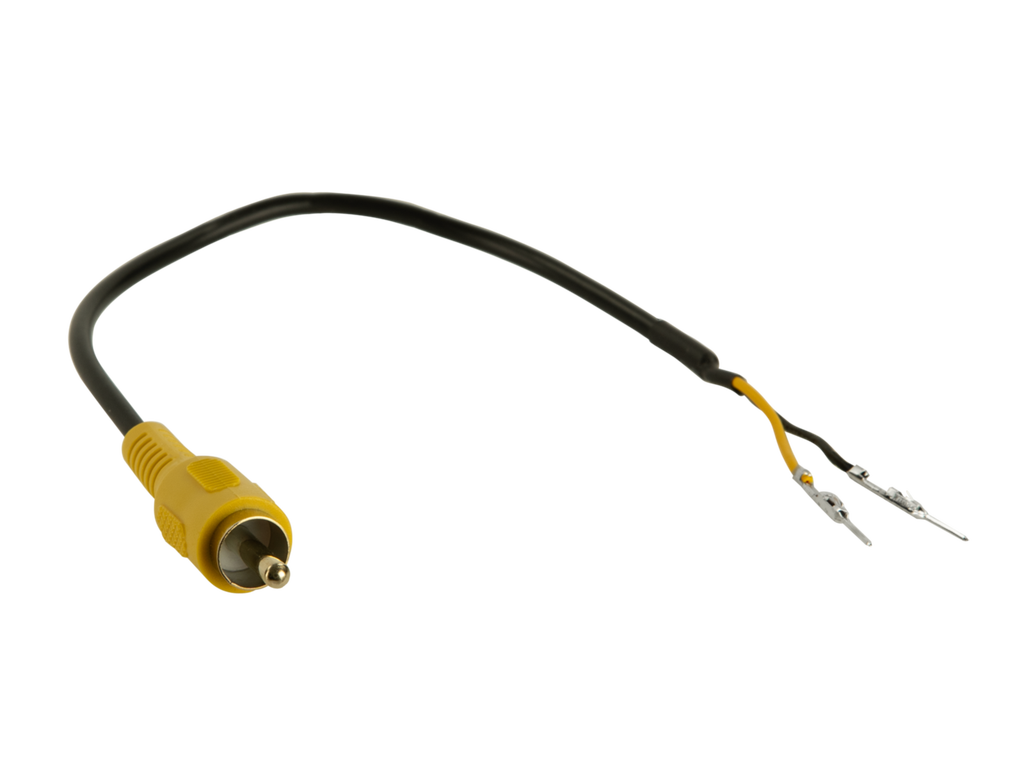

connector: OEM rear view camera > RCA(m) yellow
yellow: Video+
black: Video-
check assignment by measuring before installation
vehicles with 52 Pin Fiat connector OEM rear view camera connection:
red: Pin 31 Video+
white: Pin 32 Video -
black: Pin 33 shield
troubleshooting for flickering camera image: connect shield Pin 33 to GND contact
Ford vehicles with 32 Pin Ford connector OEM rear view camera connection:
Pin 14: Video+
Pin 25: Video-
troubleshooting for flickering camera image: connect Pin 24 to GND contact
Vehicle application:
Alfa Romeo
Alfa 4C (960) 01/2014 - 08/2018
Alfa Romeo Giuletta (940) 10/2013 - 04/2016
Alfa Romeo Giuletta (940) 04/2016 - 12/2021
Alfa Romeo Mito (955) 12/2013 - 08/2016
Alfa Romeo Mito (955) 08/2016 - 08/2018
Citroen
Citroen Jumper (250) 05/2014 - 2024
Citoren Jumper (250) 2014- 2024
Fiat
Fiat 500 (ZAF 312) 07/2015 - 2024
Fiat 500L (ZAF 199) 10/2012 - 07/2017
Fiat 500L (ZAF 199) 07/2017 - 03/2022
Fiat 500X (ZAF 334) 01/2015 - 08/2018
Fiat 500X (ZAF 334) 09/2018 - 2024
Fiat Doblo (ZAF 263) 01/2015 - 06/2022
Fiat Ducato (ZAF 250) 05/2014 -11/2021
Iveco
Iveco Daily 2019 - 2024*
Opel
Opel Movano Cargo C (Y) 10/2021 - 2024
Peugeot
Peugeot Boxer (Y) 09/2014 - 2024
*vehicles with Hi-Connect OEM touchscreen HU
