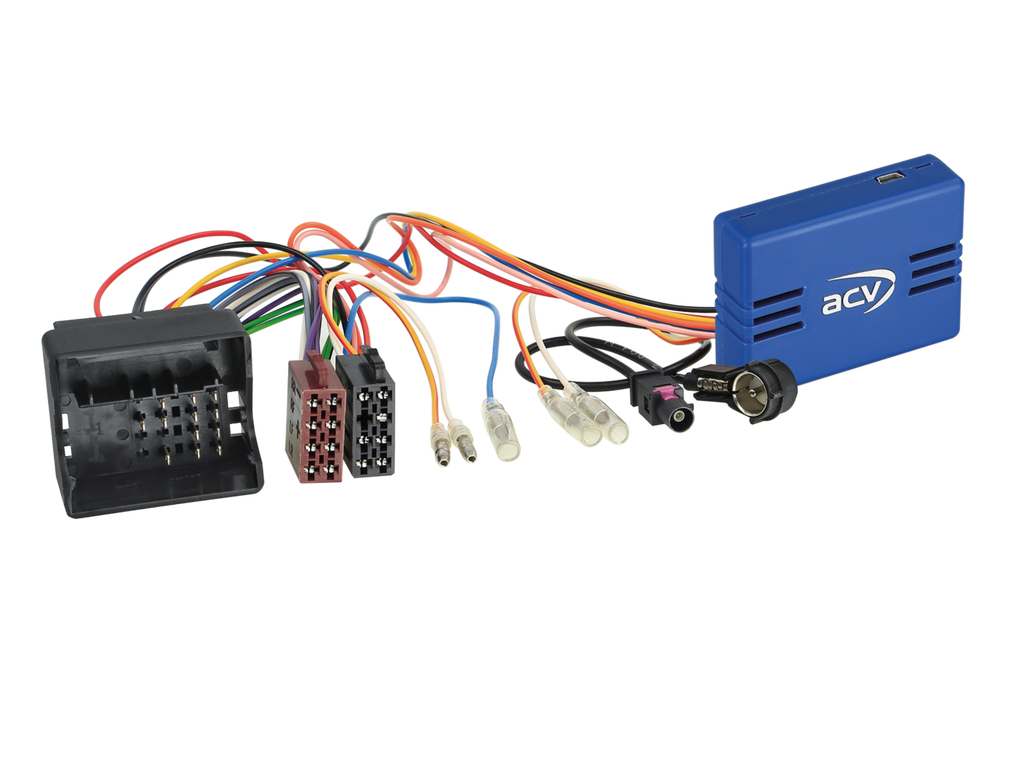

CAN-Buss adapter Mercedes

CAN-bus adapter Mercedes / Smart / VW

Ved utskifting av original radio i en bil med CAN bus system, kreves et spesifikt CAN bus-adapter for å konvertere digitale til analoge signal som tenning, belysning, revers og kjøretøyhastighetssignaler til din nye radio.

Kontakt: 40Pin Quadlock
OEM-antenne Fakra(m) > ISO(m)

Mercedes med Audio 20 2-DIN OEM HU
Mercedes med Audio 50 APS Comand NTG2.5 OEM Sat Nav***
Mercedes Sprinter (W907/W910) med Browse 1-DIN OEM HU
Mercedes Sprinter (W907/W910) med open dash
Mercedes Citan 420 (W420) med Browse 1-DIN OEM HU

Smart For Four med Comand OEM Sat Nav 40 Pin Quadlock

VW Crafter med 2-DIN OEM HU
VW Crafter med 2-DIN OEM SatNav

Mercedes Sprinter/V-Class med E-Call:
Adapter for å ivareta E-Call funksjon: 1424-27-0

Mercedes med Harman Kardon OEM forsterket system:
Aktivsystemadapter Mercedes/Porsche MOST>RCA ISO >: 13-1190-52-1

Biler med OEM ryggekamera:
Ryggekamera adapter, Fakra(m)>RCA(m) OEM camera > item: 771000-2011

Passer til:

Mercedes
Mercedes A-class (C169/W169) 10/2004 - 04/2008
Mercedes A-class (C169/W169) 06/2008 - 06/2012
Mercedes B-class (T245) 07/2005 - 04/2008
Mercedes B-class (T245) 04/2008 - 09/2011
Mercedes C-class (CL203/S203/C-klasse) 02/2004 - 09/2007
Mercedes C-class (C204/S204/C-klasse) 08/2007 - 01/2011**
Mercedes C-class (C204/S204/C-klasse) 03/2011 - 10/2015**
Mercedes Citan 420 (W420) 10/2021 - 2023
Mercedes CLC-class (CL203) 06/2008 - 02/2011
Mercedes CLK-class (W209) 04/2005 - 01/2010
Mercedes CLS-class (CLS) 04/2008 - 09//2010
Mercedes E-class (S211/W211) 03/2008 - 01/2009
Mercedes E-class (A212/C212/S212/C-klasse) 02/2009 - 03/2013**
Mercedes G-class (Geländewagen) 04/2007 - 06/2008
Mercedes G-class (ML) 09/2008 - 06/2012
Mercedes GL-class (X164) 09/2006 - 05/2009
Mercedes GL-class (X164) 05/2009 - 07/2012
Mercedes M-class (ML) 07/2005 - 04/2008
Mercedes M-class (ML) 10/2008 - 07/2011
Mercedes ML (ML) 07/2005 - 04/2008
Mercedes ML (ML) 10/2008 - 07/2011
Mercedes R-class (R-klasse) 09/2005 - 05/2007
Mercedes R-class (R-klasse) 05/2007 - 05/2010
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Sprinter (W907/W910) 06/2018 - 12/2020*/**
Mercedes Sprinter (W907/W910) 11/2019 - 2023*/**
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014
Mercedes Vito (V447) 10/2014 - 02/2019*/**
Mercedes Vito (V447) 05/2019 - 2023*/**

Smart
Smart For Four (W454) 01/2004 - 04/2007***

VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Adapter gir følgende signaler:
rosa: +12V tenningsklemme 15 1,5A maks.
oransje: +12V belysningsklemme 58 0,1A maks.
hvit: +12V reverssignal 1,5A maks.
gul/grønn gul/rød: hastighetspulssignal

*vehicles with E-call > item: 1424-27-0
**vehicles with +12V power down funktion > +12V continuous current clamp 30 batterie fused
***clock adjustment not supported > vehicles encode to Audio 20 OEM HU
