JL Audio MM80-HR

Hideaway Marine Source Unit 30 Watt x 4
På lager
Hovedlager: 2
Varenr: 2006185
Vanlig pris 7.998,00 kr inkl. mva

MediaMaster® - Hideaway Marine Source Unit for use with compatible NMEA 2000® control devices - 30 Watts x 4 @ 4 O

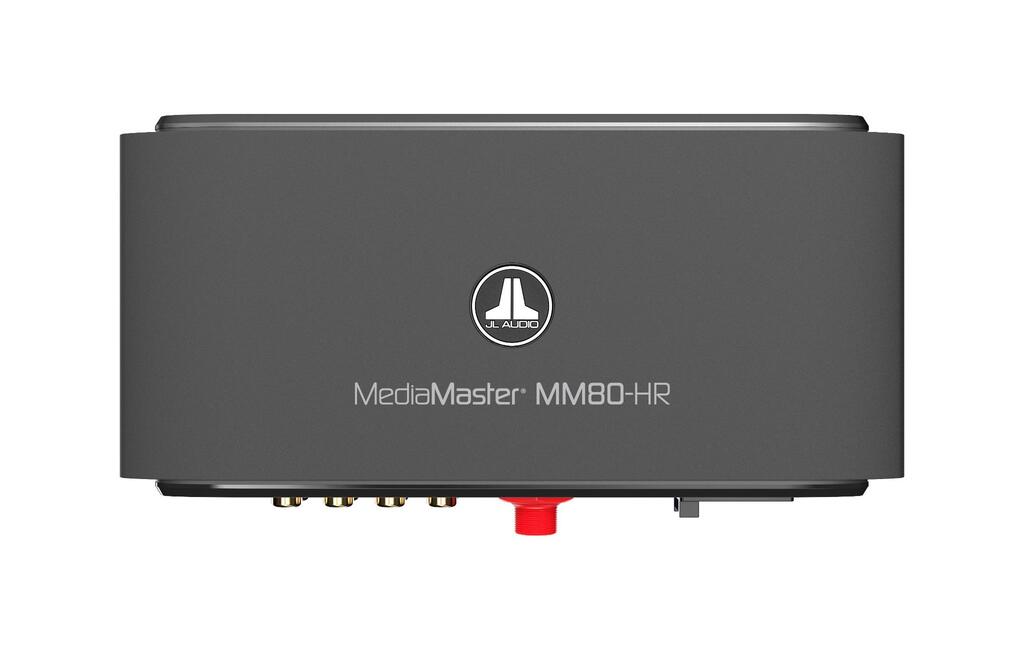

The MediaMaster® 80-HR is a high-performance, powered source unit engineered specifically for marine applications. Designed for out-of-the-way installations, the MM80-HR features certified NMEA 2000® connectivity, with all command functionality handled via two control methods:


  • A compatible MFD (Multi-Function Display) from Simrad, Lowrance or B&G via your vessel’s NMEA 2000® network. (Refer to MFD manufacturer for compatibility info.)
  • MediaMaster® MMR-40 NMEA 2000® Network Controller (sold separately): This comprehensive remote controller with color LCD display delivers the full-function MediaMaster® experience via your vessel’s NMEA 2000® network.

A variety of mechless source and media options deliver uninterrupted playback of your favorite stations and playlist while on the water. Available sources include a Digital AM/FM Tuner, Bluetooth® connectivity, dual USB connections (with charging output) for a USB drive or iPhone®, plus a pair of Analog AUX inputs. An auxiliary high-level, MIC source input is also on-hand allowing hailer commands to be broadcasted through the audio system.

Audio output options include a built-in amplifier, capable of driving your speakers with 120 watts (30W x 4 @ 4 ohms) of high-fidelity sound, plus four channels of top-quality preamp outputs from two independent audio zones (Zones 1 and 3).

Zone Output options:

  • Zone 1: Preamp (RCA) and Speaker-Level
  • Zone 2: Speaker Level (only)
  • Zone 3: Preamp only (RCA)

The configurable master volume control permits level adjustments of all zones together, plus:

  • Independent level control of Zones 1 and 2
  • Separate attenuation control of Zone 3
  • Max Volume Limit - Set independent volume level limits for Zones 1 and 2
  • Tone Controls - Customize your sound with Bass, Mid and Treble controls

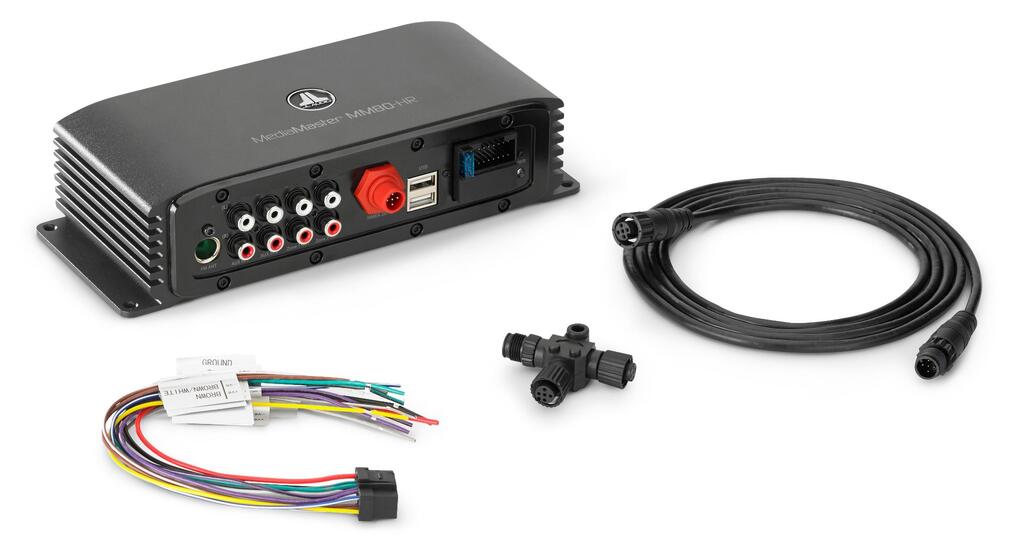

Note: A MMR-40 NMEA 2000® Network Controller (sold separately) or Simrad, Lowrance or B&G Multi-Function Display (not included/refer to MFD manufacturer for compatibility info) is required to use the MM80-HR. One NMEA 2000® Micro-C drop cable (6.3 ft / 1.92 m) and T-connector are included with the MM80-HR. Additional cables and connectors may be required for your specific vessel network. You may also use our MMC-PN2K Powered Network Cables (sold separately) to create your own isolated, stand-alone network.

Last ned manualen. Klikk her ...

FM Tuner 87.9 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner 530 kHz to 1710 kHz (10 kHz step)
Favorites 24 presets across AM/FM bands (12 each)
Core Specification Version 4.0
Codec SBC
Connection Range Up to 35 ft / 11 m
Interface USB 2.0 host
Maximum Current Output 1 A
File Support Types FAT16, FAT32, NTFS
Apple Compatibility iPhone 5 or beyond (functionality contingent upon compatible iOS release)


Input Operating Voltage 10 - 16 VDC
Standby Current Draw 5 mA
Operating Current Draw 15 A
Recommended Fuse Value 15 A
Operating Temperature Range -4 F to +140 F (-20 C to +60 C)
Display Size / Type N/A
Display Resolution N/A
Output Channels Zones 1&3: Two stereo pairs of RCA plugs (2V RMS) Zones 1&2: Two stereo pairs of Speaker Outputs (30 W RMS x 4)
Maximum Output Voltage 2V RMS
