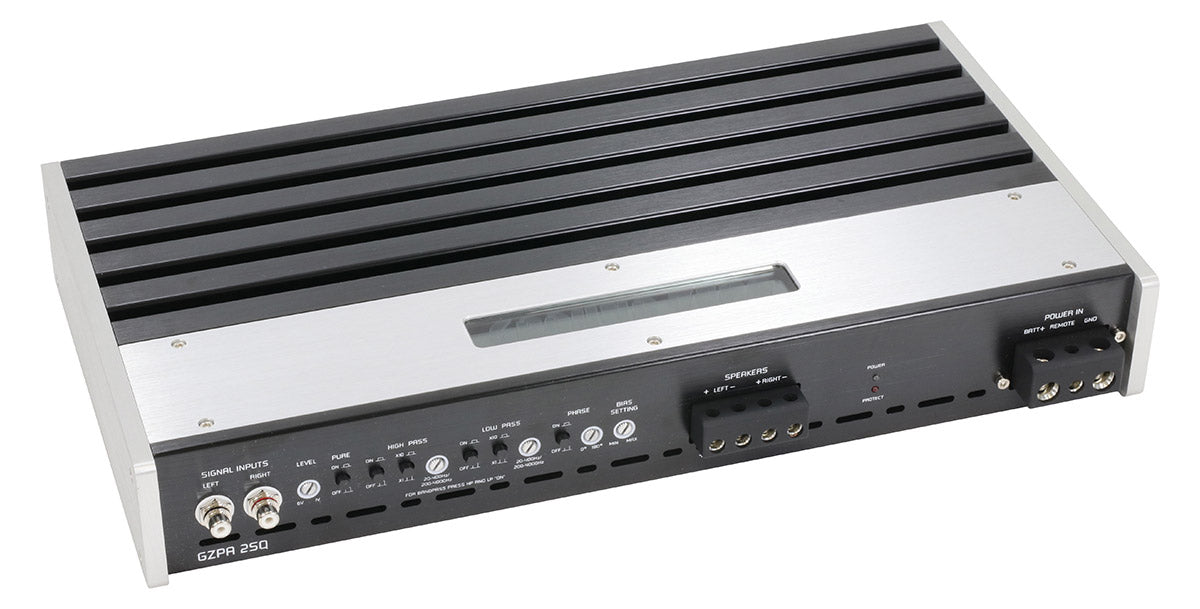

Ground Zero GZPA 2SQ

Plutonium 2 kanaler
I butikk
Hovedlager: 1
Varenr: 17564
Vanlig pris 10.900,00 kr inkl. mva
  • High-End SQ amplifier
  • Shielded dual power supply
  • Discretely constructed MOS-FET amplifier section
  • 1-ohm stable stereo / 2-ohms stable in bridged mode
  • Smoothly variable BIAS adjustment
  • Variable input sensitivity
  • Capsulated potentiometers
  • Wide range high pass and low pass filter
  • Filter range multiplication switch (x10)
  • Wide frequency range for high resolution music (10 Hz – 50 kHz)
  • Soft start delay
  • Operation and protection indicator
  • Start-Stop capability (9 -16 Volt)
  • Overheat and short circuit protection
  • Low distortion Burr-Brown OPA2134PA operation amplifier
  • Ground Zero exclusive Mundorf Mcap capacitors
  • Solid and high efficient black anodized heatsink
  • White illuminated lasered glass logo plate
  • Technical data:
  • Output Power at 4 Ohm (CEA*): 2 x 175 W
  • Output Power at 2 Ohm (CEA*): 2 x 315 W
  • Output Power at 1 Ohm (CEA*): 2 x 500 W
  • Bridge mode at 4 Ohm (CEA* / 10% THD): 2 x 450 W
  • Bridge mode at 2 Ohm (CEA* / 10% THD): 2 x 700 W
  • Lowpass: 20 – 400 Hz / 200 – 4000 Hz (switch)
  • Highpass: 20 – 400 Hz / 200 – 4000 Hz (switch)
  • Bandpass: Yes
  • Phaseshift: Yes
  • Variable Bias Setting: Yes
  • Illumination: Yes
  • Dimensions: 22,2 x 6,05 x 42 cm
  • Brukermanual PDF
