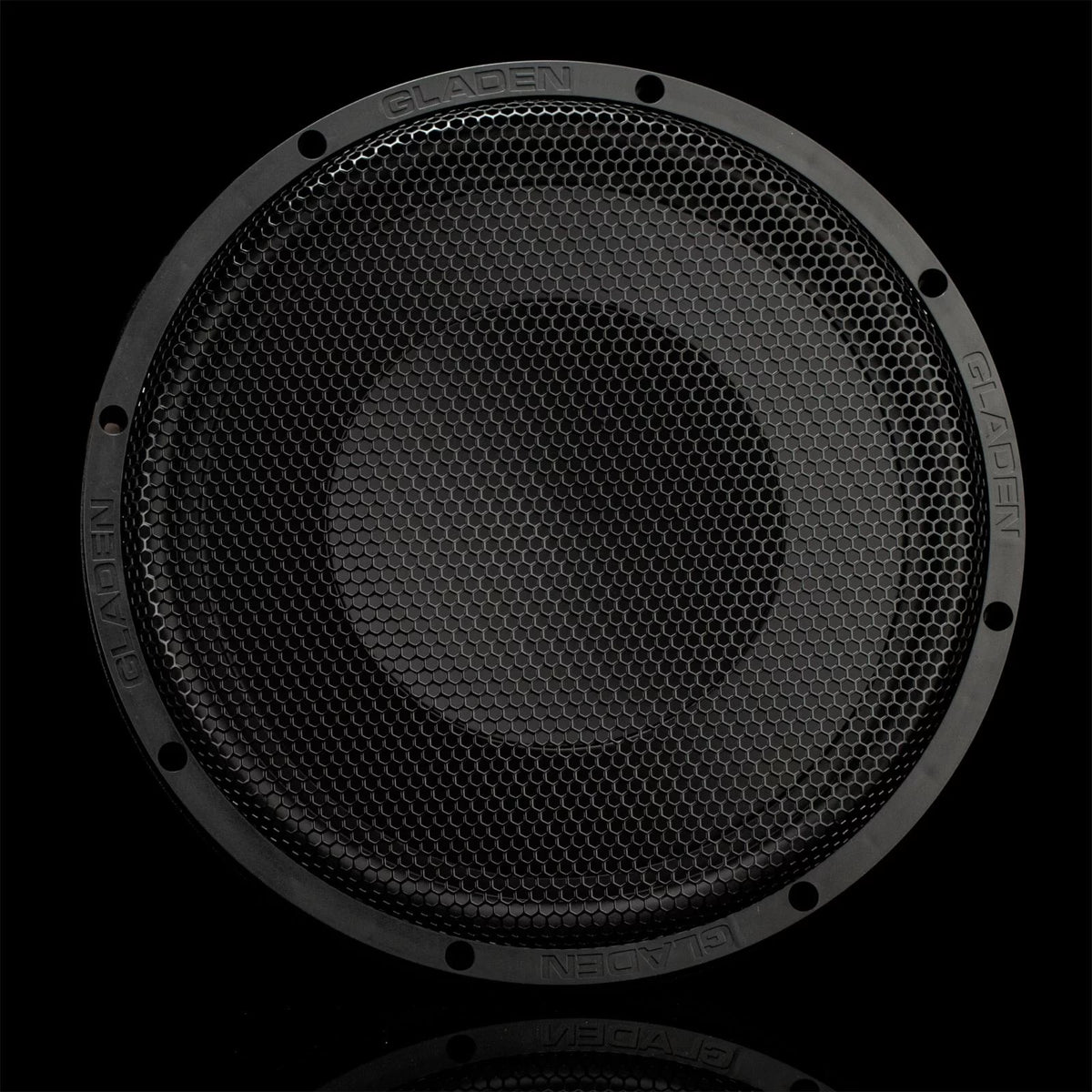

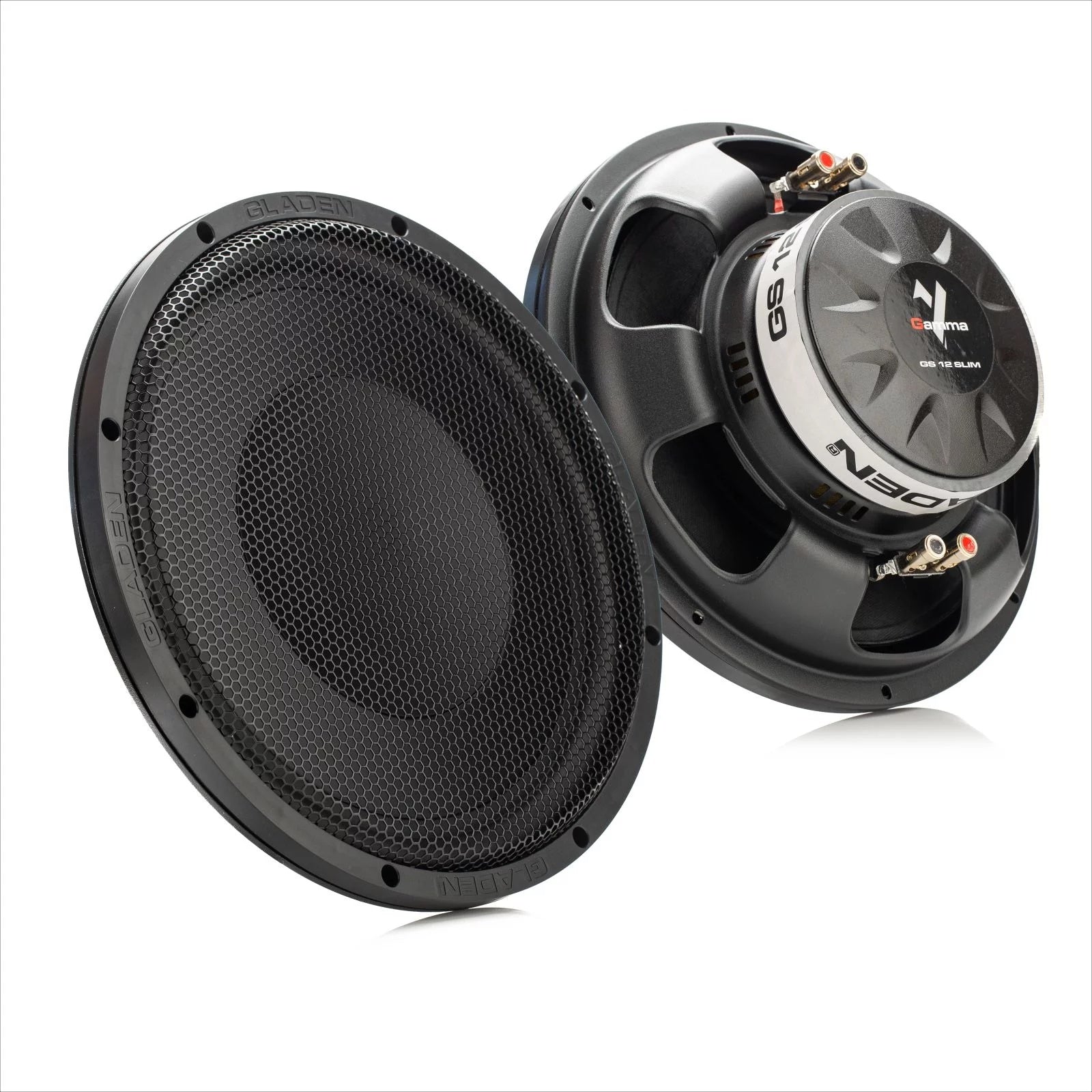

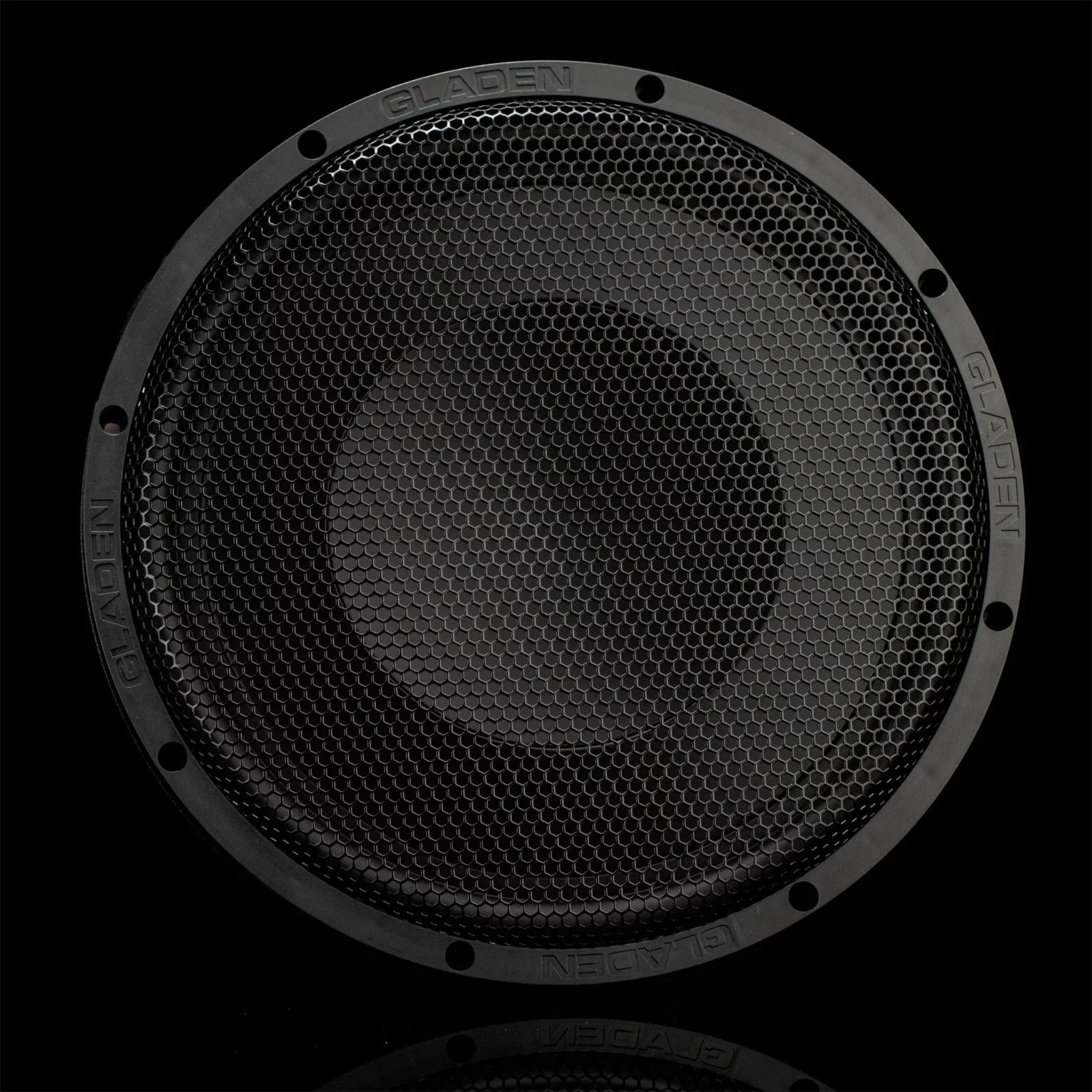

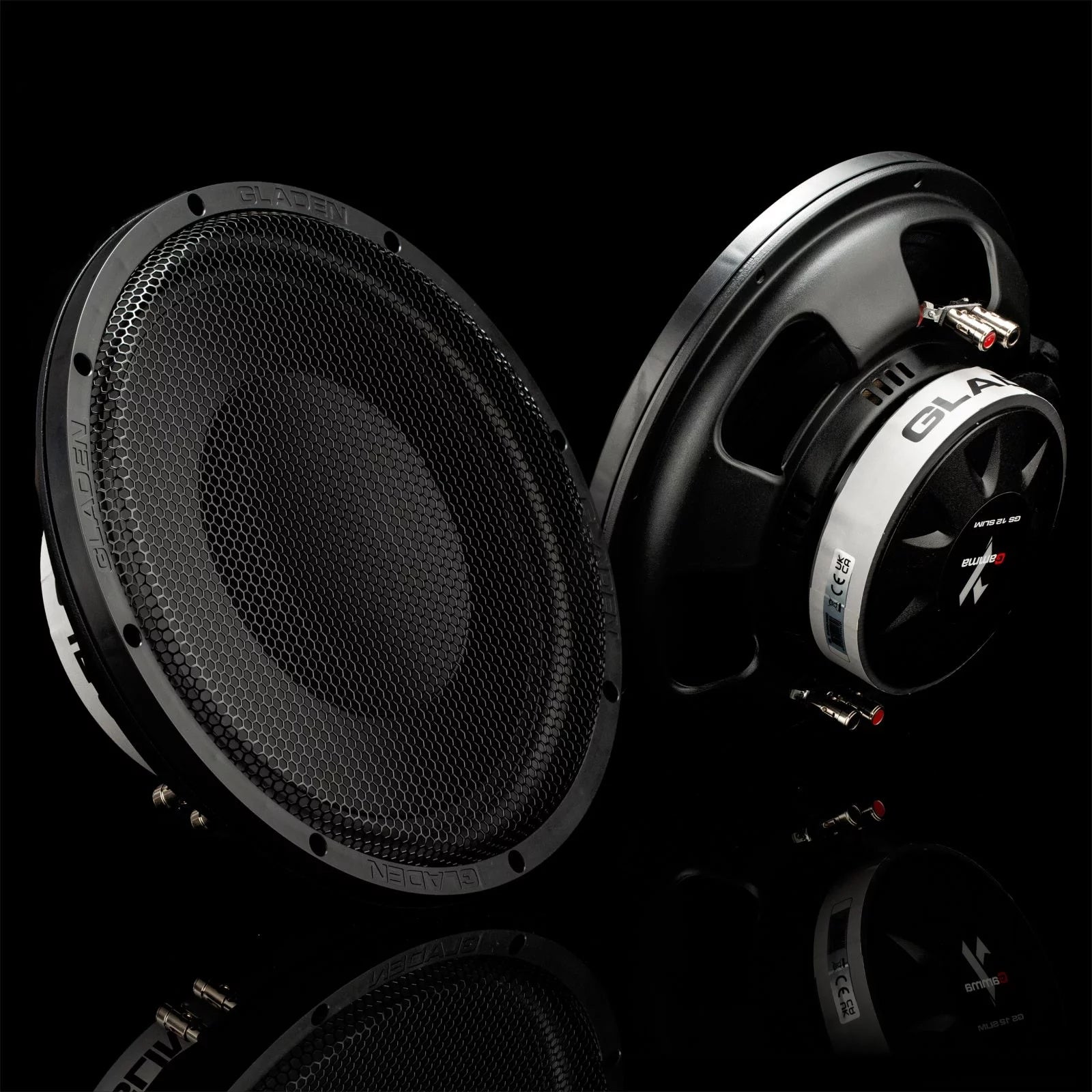

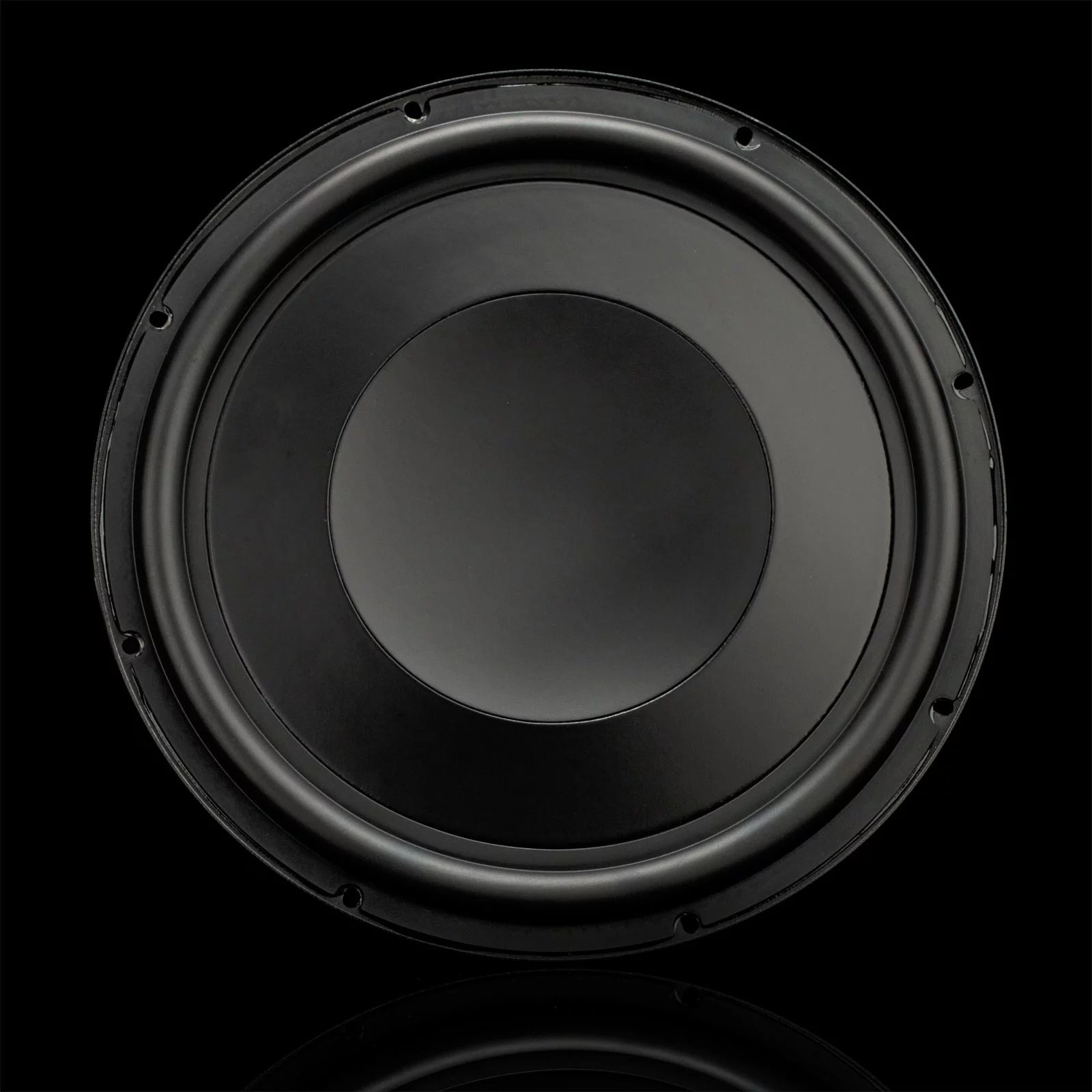

GLADEN Gamma GS12-Slim - NY!

GLADEN Gamma GS12-Slim - NY!

• Gladen GAMMA subwoofere er designet for høy ytelse i kompakte basskasser og for å kunne fungere bra med moderat effekt.
• 12" med lav innbyggingsdybde
• 500 W RMS (anbefalt rms effekt: 250-650W)
• Impedans 2 + 2 ohm
• 2,5 tommmers svingspole
• Monteringsdybde: 100mm
• Anbefalt kasse: 25 til 45 liter
• Grill og monteringsring medfølger
• Recommended volume (sealed):25-30 Liter
• DC resistance (Rdc):3,56 O (serial)
• Nominal impedance (ZN):2x2 O
• Resonance frequency (Fs):26,5 Hz
• Voice coil diameter:2,5 inch
• Voice coil height:30 mm
• Mechanical Q factor (Qms):5,64
• Electrical Q factor (Qes):0,49
• Total Q factor (Qts):0,45
• Moving mass (md):183,6 g
• Effective piston area (sm):551,5 cm2
• Mechanical resistance (Rms):5,42 kg/s
• Compliance (Cms):0,197
• Force factor (BL):11,17 Tm
• Equivalent air volume (Vas):61,5 dm3
• SPL 2,83V/1m:89,02 dB
• External diameter:330 mm
• Installation diameter:305 mm
• Installation depth:100 mm
