Axton ATX369

3veis koaksialhøyttaler 6x9"
Hovedlager: 7
Varenr: ATX369
Vanlig pris 971,00 kr inkl. mva
Vanlig pris 1.295,00 kr Salgspris 971,00 kr inkl. mva
Delbetal med Fiverty på 3, 6, 12 måneder eller i ditt eget tempo.

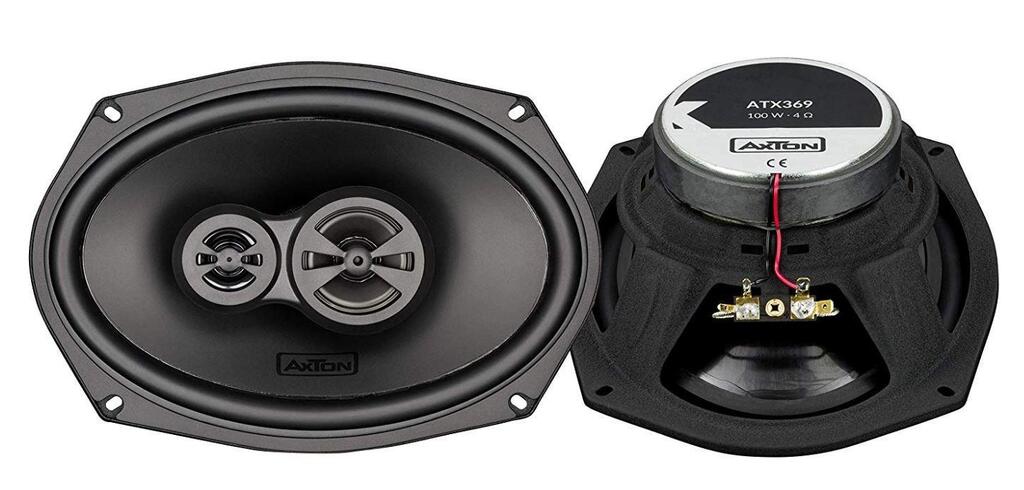

Axton ATX369

The new 3-way triaxial system ATX369 also stands for musicality, precision and resilience - paired with a high degree of installation convenience. The ATX369 has a sensibly dimensioned ferrite magnet, which provides a rich, powerful bass foundation, but also fits into the original installation openings of most vehicles. The mid-bass driver impresses with its low-resonance PP membrane and long-term stable NBR surround. The centering spider made of Nomex and the large voice coil on a polyimide carrier guarantee high mechanical and electrical resilience. The 3-way system uses a specially developed 13 mm fabric tweeter which, thanks to a powerful neodymium magnet, hardly distorts even at high playback levels. In addition, there is a 51 mm Mylar cone mid-range speaker, which is very confident in its frequency range and with great attention to detail. Hard gold-plated connection terminals ensure trouble-free long-term operation without signal losses that affect the sound and underline the value of this AXTON triaxial.

Overview:

  • precision-made sheet steel basket
  • Voice coil cooling through ventilation openings on the basket
  • powerful strontium ferrite magnet
  • Injection-molded diaphragm made of low-resonance polypropylene
  • linear bead made of NBR nitrile rubber
  • Ventilated Nomex fiber centering spider
  • 25 mm 4-layer CCAW voice coil on a Kapton carrier
  • Tweeter / midrange with 13/51 mm Mylar dome and ferrofluid-cooled neodymium drive
  • Foil capacitors as high pass for tweeters and midrange
  • hard gold-plated, corrosion-resistant plug contacts
  • LS grille included

Technical specifications:

  • Frequency response: 45 Hz - 22 kHz
  • Nominal impedance: 4 ohms
  • Sensitivity 1 W / 1 m: 93 dB
  • Nominal load capacity: 100 Wrms
  • Installation diameter: 15 x 23 cm
  • Installation depth: 69 mm
